This guide presents a practical workflow for automatically breaking large visualization dashboard mockups into reusable asset packs. The core capability is using GPT-Image-2 to extract icons, borders, title backgrounds, and module base panels in batches, solving the common problem that a full design image cannot be directly translated into production code. Keywords: GPT-Image-2, visualization dashboard, asset extraction.
This workflow can now decompose dashboard assets reliably.
| Parameter | Details |
|---|---|
| Primary tools | GPT-Image-2, Coze, Photoshop/macOS Preview |
| Input | Full visualization dashboard design mockup |
| Output format | PNG asset pack |
| Extraction strategy | 5 batches + supplemental RESCAN |
| Background strategy | Dark background transition, recommended #0B1426 |
| Core dependencies | Structured prompts, manual review, post-processing background removal |
| Applicable scenarios | Smart cities, factory dashboards, operations command centers |
| Reference context | Originally published as a Juejin technical practice article |
Design mockups cannot go straight into development and must first become reusable assets.
A raw dashboard image is usually a visual mockup, not an engineering-ready asset set. Icons, cards, corner markers, decorative lines, and module backgrounds are mixed into a single image, which makes direct frontend reuse impossible.
The real implementation process involves decomposing the full image into a structured asset set and then mapping those assets into CSS, Canvas, or WebGL contexts. The focus of this article is not how to generate a mockup, but how to convert a mockup into production assets.

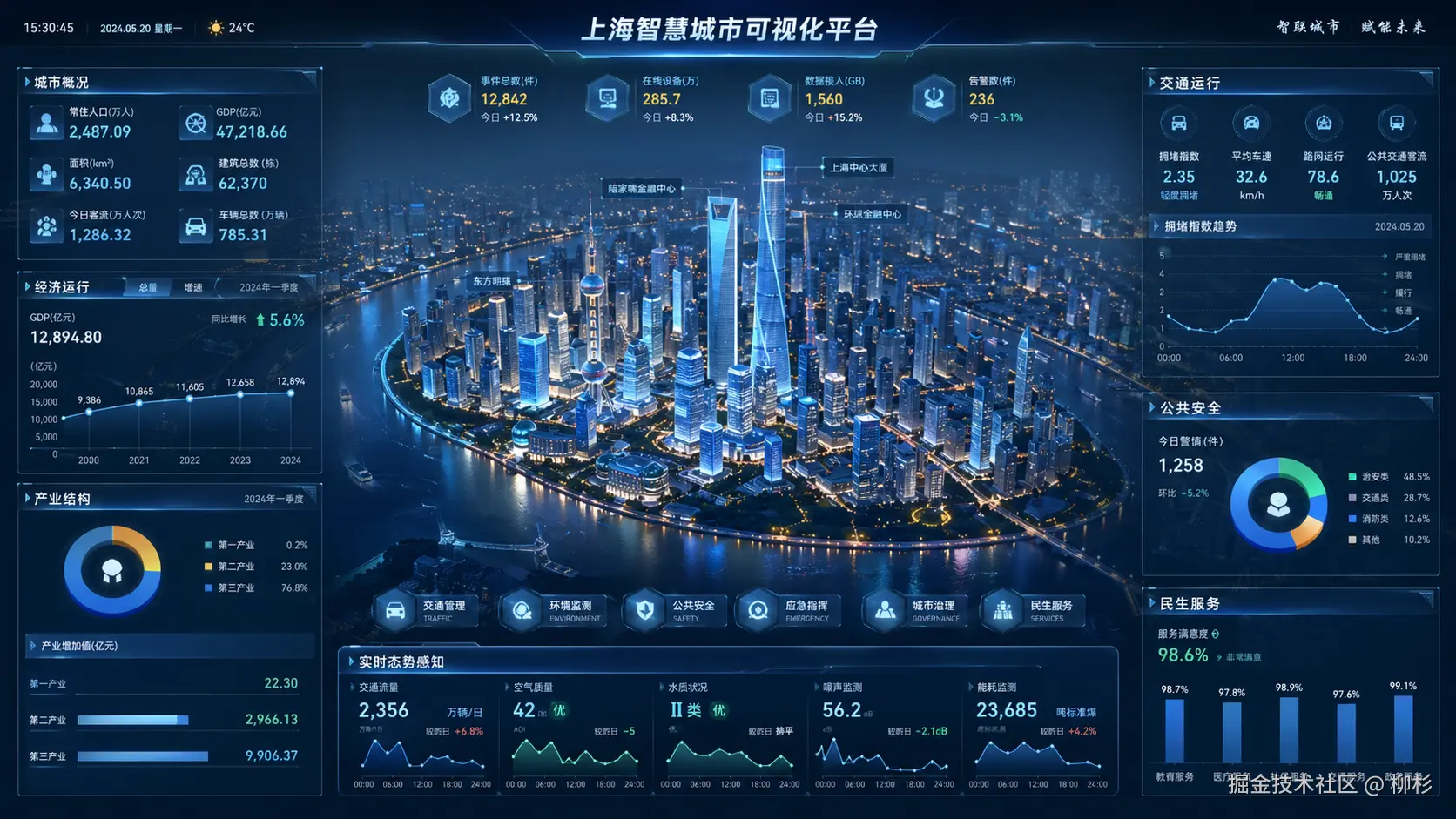

AI Visual Insight: This image shows a typical large-screen dashboard layout: a central focal area, left and right information panels, glowing borders, and dark futuristic base panels. It works well as an asset extraction sample because the hierarchy of icons, decorative lines, title bars, and container borders is clearly defined.
A good prompt must constrain the role, batch scope, and output standard.
In practice, the biggest mistake is to say only, “extract the icons.” That often causes the AI to misclassify chart elements, text decorations, and even local highlights as standalone assets.
A more reliable approach is to constrain the model as a “UI asset decomposition expert” and force category-by-category output: icons, base panels, title backgrounds, divider lines, and module backgrounds must be exported separately and never mixed in the same batch.
Start BATCH-01
Goal: Extract standalone icons only
Requirements: Preserve glow and shadows; exclude text, charts, and truncated elements
Output: PNG, minimum size 256×256This instruction compresses a vague request into an executable specification.
Batch-based extraction is the key engineering strategy for improving stability.
The full workflow is divided into five batches: BATCH-01 for general icons, BATCH-02 for card base panels, BATCH-03 for title backgrounds, BATCH-04 for divider lines and corner markers, and BATCH-05 for module backgrounds.
At its core, this approach converts a complex design mockup into an enumerable asset set. The benefit is that the AI does not need to understand every visual layer at the same time, which significantly reduces the error rate.

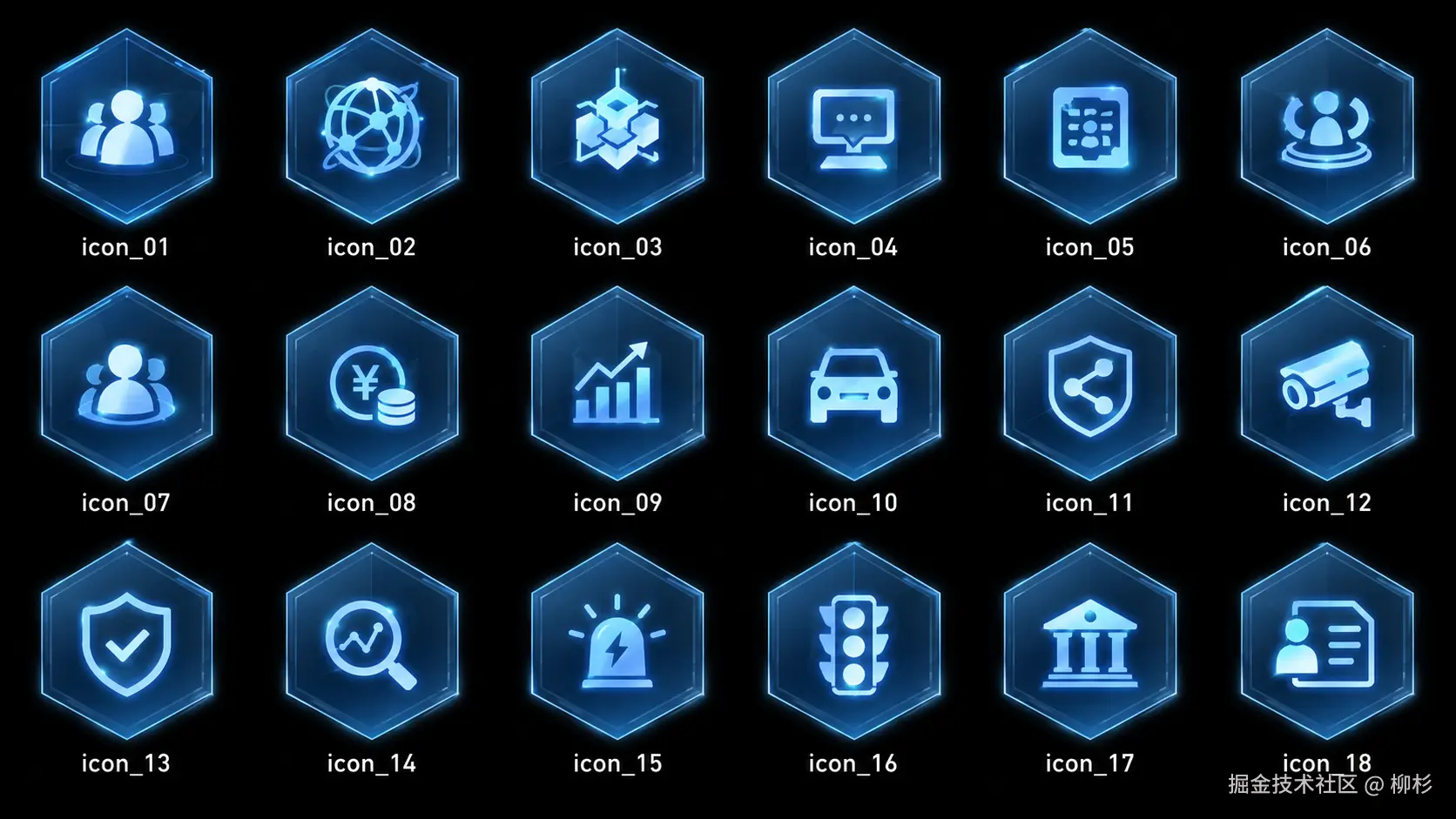

AI Visual Insight: This screenshot highlights the core of prompt engineering: by defining the role, batch rules, size constraints, and exclusion conditions, you switch the image model from “creative mode” into “cropping and extraction mode,” reducing unintended redesign behavior.
A dark-background transition strategy is more practical than pursuing transparent backgrounds directly.
The original goal is often transparent PNG output, but in practice transparent export is not stable. It tends to introduce edge artifacts, missing glow, and lost semi-transparent details.
A more controllable intermediate state is to export everything onto a uniform dark background such as #0B1426. This not only makes it easier to preview the assets in a realistic dashboard environment, but also simplifies later channel-based background removal.
.asset-preview {
background: #0B1426; /* Preview assets against the real dashboard background color */
display: inline-flex;
padding: 16px; /* Leave room to inspect glowing edges */
}This style helps developers quickly validate whether asset edges remain intact during implementation.
Icons, base panels, and title backgrounds are the first three asset types that should be standardized.
BATCH-01 is the best place to start, because icons usually have clear boundaries, are easy to validate, and can be reused directly in components.

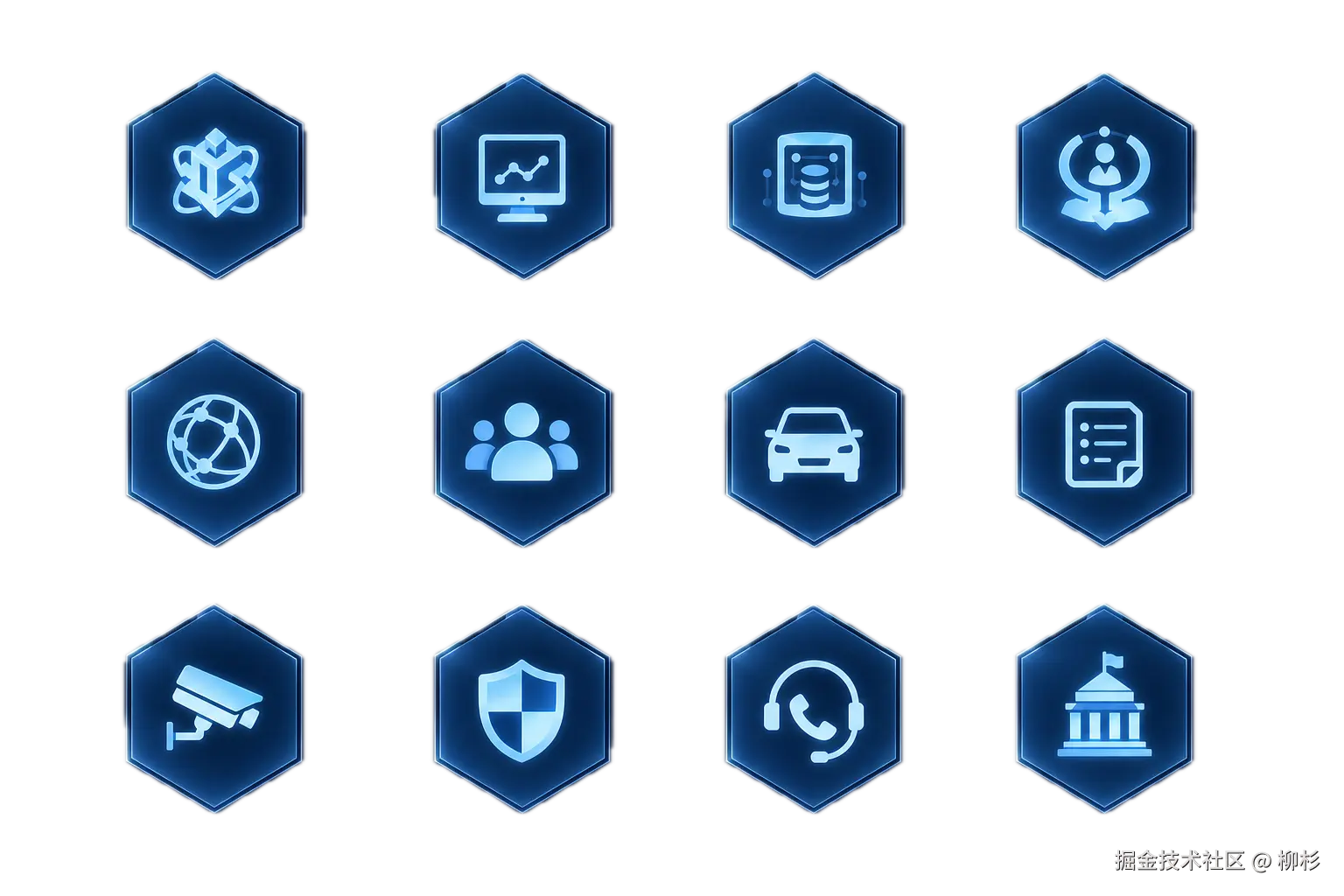

AI Visual Insight: This image shows standalone icon assets already extracted according to the rules. The key point is that the glow edges and contrast relationships in the dark environment are preserved, which makes this batch well suited for component-based management with standardized dimensions.
BATCH-02 is not about cropping full cards. Its purpose is to extract hollow containers. Remove all text, numbers, and charts, and preserve only the border, corner markers, and lighting effects so the result can serve as a frontend background container.

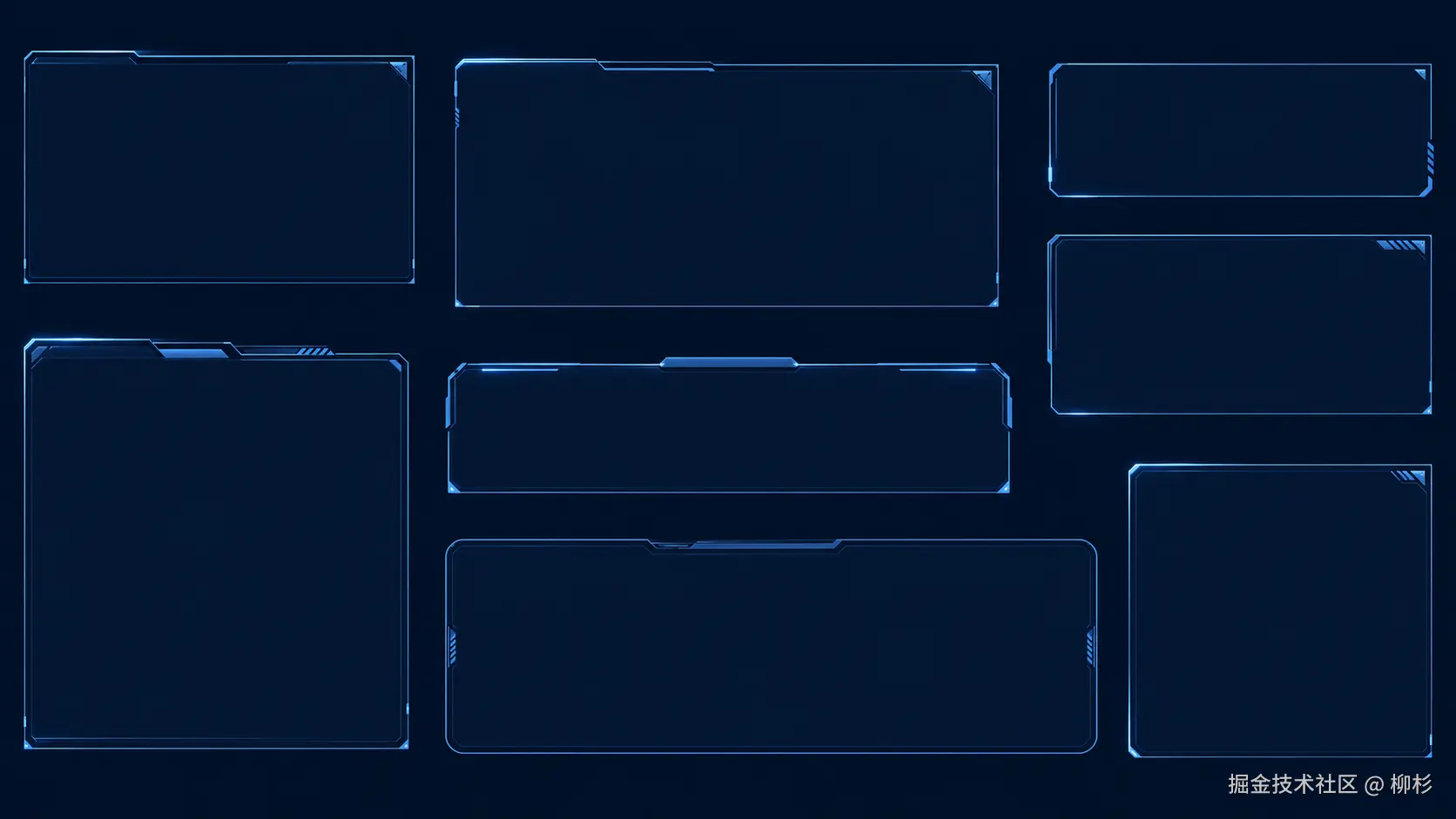

AI Visual Insight: This image illustrates the extracted “shell structure” of a card base panel: borders, chamfered corners, and glowing strokes are retained, while the central business content is cleared, making it easy for frontend code to overlay real data.
Title backgrounds and divider lines determine visual consistency across the dashboard.
BATCH-03 extracts title bars, while BATCH-04 extracts lines, corner markers, and decorative fragments. These assets are small, but they have a major impact on the overall futuristic visual style.
<div class="panel-title">
<span>Real-Time Alerts</span>
</div>.panel-title {
background-image: url('./03_标题背景/title-bar.png'); /* Use the extracted title background */
background-size: 100% 100%; /* Keep the title decoration fully covered */
}This code shows that an extracted title background can be wired directly into the page skeleton.
The asset pack structure should serve frontend engineering integration.
A recommended approach is to organize directories by batch and preserve numeric prefixes in naming. This makes script-based processing, component mapping, and asset inventory much easier.
Shanghai Smart City Asset Pack/
├── 01_Icons/
├── 02_Card-Base-Panels/
├── 03_Title-Backgrounds/
├── 04_Dividers-and-Corner-Markers/
└── 05_Module-Backgrounds/The advantages of this directory structure are clarity, automation readiness, and strong support for team collaboration.
Two hard problems still remain unsolved.
The first is stable export with transparent backgrounds. For now, the more realistic solution is to export PNGs on a dark background first, then perform secondary processing with Photoshop, macOS Preview, or an online background removal tool.
The second is the central 3D scene. Even if areas such as city models or factory models are cut into static images, they still cannot provide interactivity. Reproducing the spatial feel of the original mockup usually still requires Blender, Three.js, or a model baking workflow.

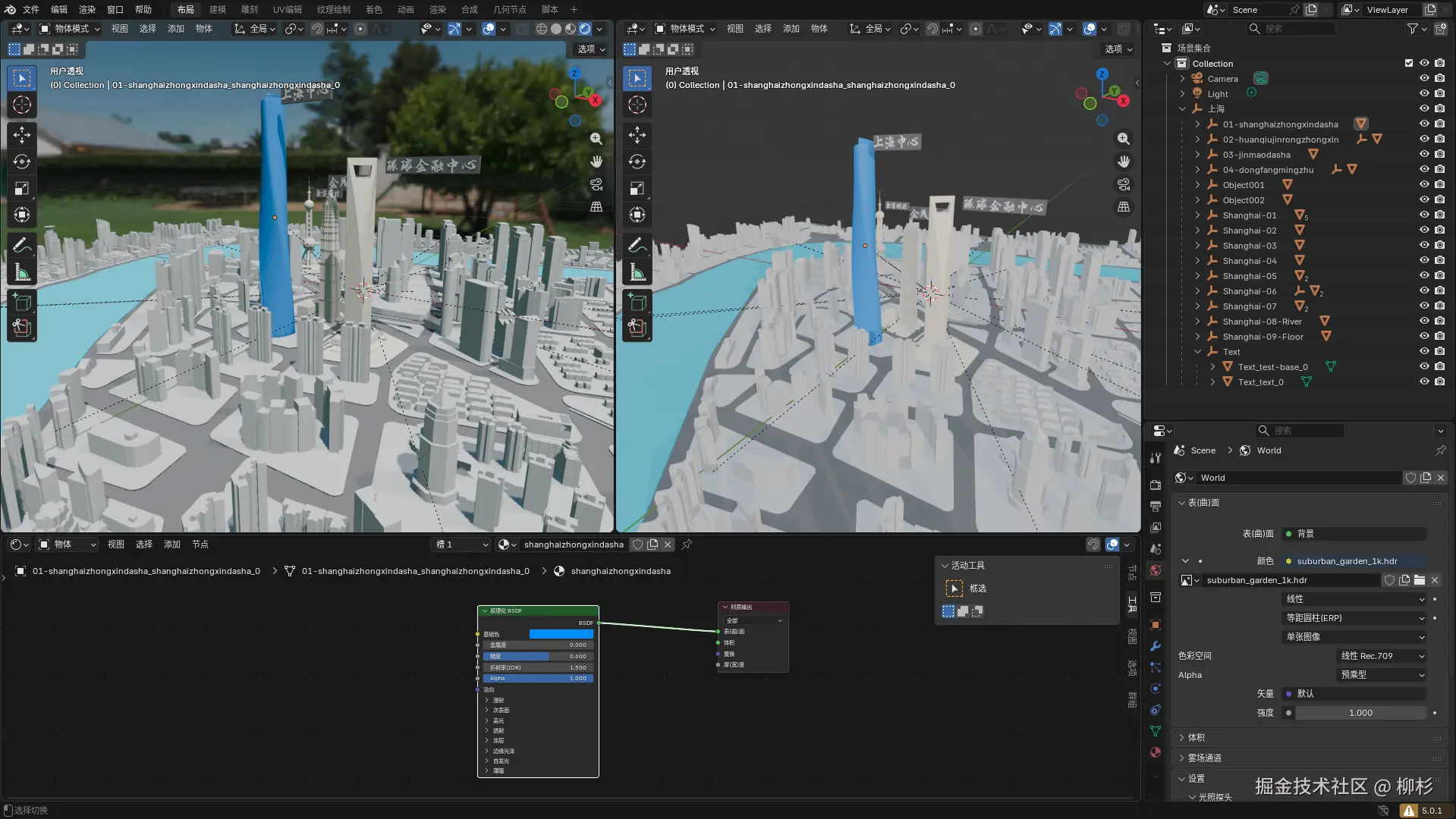

AI Visual Insight: This image shows that the author already attempted to import a city model into a 3D tool, but there is still a gap between a static reference image and a fully interactive 3D scene in terms of materials, lighting, camera setup, and baking results. This is not a problem that simple image slicing can solve.
FAQ: The 3 questions developers care about most
Q1: Why not directly ask the AI to output transparent PNGs?
A: Because transparent edges are unstable in scenarios involving glow, feathering, and shadows. Exporting faithfully on a dark background first and removing the background afterward gives you much better overall control.
Q2: Which batch is most worth doing first?
A: Start with BATCH-01 icons and BATCH-02 card base panels. These two categories are the easiest to reuse and the most effective for quickly helping frontend teams assemble the page framework.
Q3: Can the 3D hero visual be reconstructed directly by slicing images?
A: Usually not. Static slices can only reuse the visual surface. They cannot provide interactivity, perspective changes, or real-time lighting effects, so you still need a 3D modeling or rendering workflow.
Core summary: This article reconstructs a GPT-Image-2-based workflow for decomposing large-screen dashboard mockups. By using batch-based prompts to extract icons, card base panels, title backgrounds, divider lines, and module backgrounds, it standardizes the output into a reusable asset pack and analyzes key challenges around transparent backgrounds, dark-background transition workflows, and 3D scene reconstruction.
